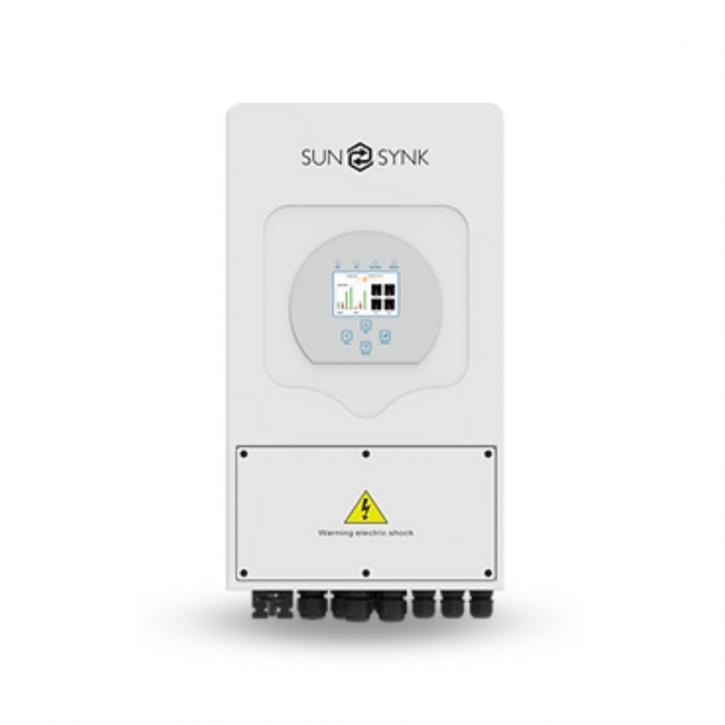

SunSynk 5.5kW 48V Hybrid Inverter

• Start with UPS backup power (with batteries and inverter only) and add panels later.
• Start with Grid-tied (with panels and inverter only) and add batteries later.
• Install a complete Hybrid system including batteries and solar panels which can be expanded, or...
• Go totally off the grid with a completely independent system.​

Ideal for powering TVs, decoders, computer equipment and appliances that consume more energy such as fridges, microwaves, washing machines, dishwashers, kettles and toasters.

Introducing the Sunsynk Hybrid Inverter - the ultimate power management tool that allows you to achieve energy parity by efficiently managing power from multiple sources such as solar, mains grid, and generators. With the ability to store and release electric power as needed, the Sunsynk Hybrid Inverter is perfect for a variety of applications, including marine vessel power management, home and office power shedding, fuel-saving UPS systems, and remote locations with solar and wind generators.

This inverter is designed to be highly efficient and reliable, with a multi-core processor and advanced MPPT control that ensures a fast response time. It also has a programmable export and can operate in multiple modes, including grid-tie only, hybrid, off-grid, and battery-only. With a maximum power input of 6500W and a battery charger adjustable for battery bank size and type, the Sunsynk Hybrid Inverter is a versatile solution for all your power management needs.

The Sunsynk Hybrid Inverter is also easy to install and comes with a 5-year warranty, so you can rest assured that your investment is protected. With its IP65 rating, it is built to withstand even the harshest environments and is suitable for use in building sites, military locations, and telecommunication sites.

Don't miss out on the opportunity to achieve energy parity with the Sunsynk Hybrid Inverter. With its wide range of features and applications, it's an investment you won't regret.

The Inverter has many uses and is recommended for the following applications:

• Marine (vessel power management)
• Power shedding (home / office / factory)
• UPS (fuel saving systems)
• Remote locations with solar and wind generators
• Building sites
• Military locations
• Telecommunication sites

Features:

• Inputs:
  • PV solar
  • AC grid power
  • Batteries
  • Generator
• Output voltage - 220/230/240Vac
• Continuous power - 5000W
• Backup power - 5000W
• DC – 48V
• Battery charger – 120A
• Transfer time <= 10ms
• Battery charger adjustable for battery bank size and type
  • Can charge Lead Acid and Li-ion batteries
  • Li-ion battery charging self-adapts to BMS
• Solar Input
  • Max power input – 6500W
  • Max V DC input – 370V (100V~500V)
  • Max current input – 11A + 11A
  • MPPTs – 2
  • MPPT Range – 125~425V
• Multi-core processor design and advanced MPPT control
• High reliability and response speed
• Programmable export
• Works parallel on or off-grid
• Single-phase operation
• Multiple operating modes:
  • Grid-tie only
  • Hybrid
  • Off-grid
  • Battery only
• Additional features
  • AC couple – For additional PV input
  • 6 stages time of use settings
• ​IP65
• Warranty: 5 Years
