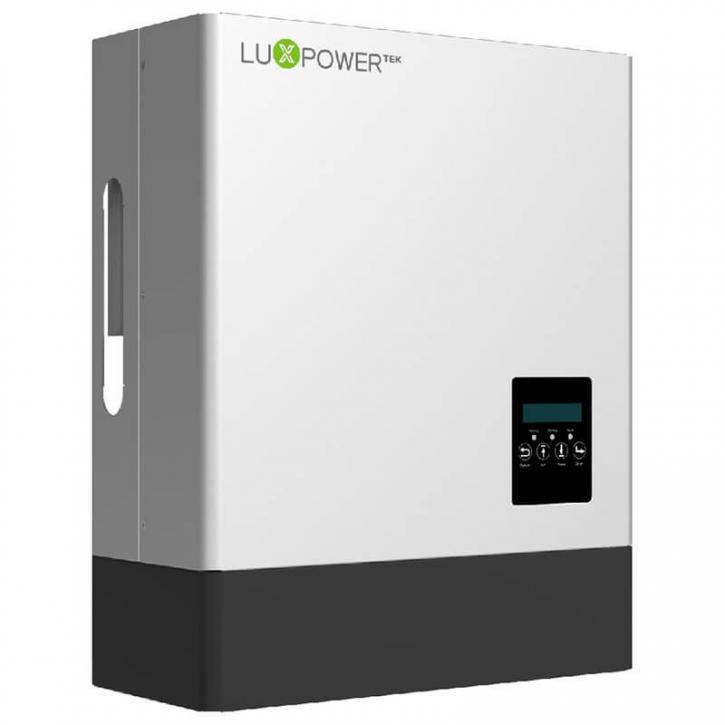

Luxpower LXP5000 5kW 48V Hybrid Inverter
TYPE: Hybrid
A newly designed solar and energy storage best off grid inverter, capable to install in on-grid solar, off-grid solar and back-up systems. LXP Hybrid enables a programmable and scheduled smart solar energy storage system to help increase your solar energy self-consumption rate, protect your home appliances from grid shortage, and balance your energy usage strategy to save energy bill.
High battery voltage, higher efficiency
Intelligent working modes
Stronger UPS
Easy to use with battery
IP65, indoor & outdoor use
Free monitoring & remote upgrade
Advanced Parallel, up to 60kW
Plug & Play, seamless switching under 10ms
LXP hybrid inverters support variable working modes
Self consumption mode: Solar power will be used to take house load first, the left solar power will be used to charge the battery, after battery charged, the solar power can feed into grid.
Force charge and discharge mode: Off Grid Solar Inverter will charge or discharge battery according to the time users set.
Charge first mode: Solar power will used to charge battery first, then take family load and at last feed into grid. The best off grid inverter mode is used in the area where grid power supply is not stable
The LXP off grid solar inverter MG series support parallel connection function. Which means users can extend their off grid power very easily. Due to the advanced control method, there are some advantages for the parallel system:
As many as 9 inverters can be connected
There is no requirement for same length of cable connection
Users can connect all inverters to a big battery bank or connect to different battery group
Description
Luxpower 5kw 48v Hybrid Inverter
Separate Generator Interface Available
Battery Voltage: 48v
Battery Voltage Range: 40-60v
Max Charge/Discharge Current 80A
Maximum Charge/Discharge Power: 4000w
MPPT Numbers: 2
Strings Per Mppt: 1/1
Max DC Input Current: 12.5A/12.5A
Max DC input For Single MPPT: 4000W/4000W
Max PC Input power: 8000w
DC Input Voltage Range: 100-550v
Nominal DC Input Voltage: 360v
MPPT Range: 120-500v
UPS Max Output Power WITH Solar: 5000w
UPS Max Output Power WITHOUT Solar: 4000w
Peak Power WITHOUT Solar : 4500w 30s
Max AC Output Power : 5000W
Protection Includes:
Reverse Polarity Protection
Over Current/Voltage Protection
Anti-islanding Protection
AC Short-ciruit Protection
Leakage Current Protection
Ground Fault Monitoring
Grid Monitoring
Ingress Protect Degree
