This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. The transformerless design provides reliable power conversion in compact size.
The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.
Features:Rated power 3KW, power factor 1.Built-in MPPT solar charge controller.High frequency inverter with small size and light weight.Pure sine wave AC output.Overload, short circuit and deep discharge protection.Configurable AC/ solar input priority via LCD setting.Compatible to mains voltage or generator power.With CAN/RS485 for BMS communication.WIFI/ GPRS remote monitoring (optional)
FEATURES
- Built-in MPPT solar charge controller
- High frequency inverter with small size and light weight
- Pure sine wave AC output
- Overload, short circuit and deep discharge protection
- Configurable AC/ solar input priority via LCD setting
- Compatible to mains voltage or generator power
- With CAN/RS485 for BMS communication
- WIFI/ GPRS remote monitoring (optional)
Specifications
General

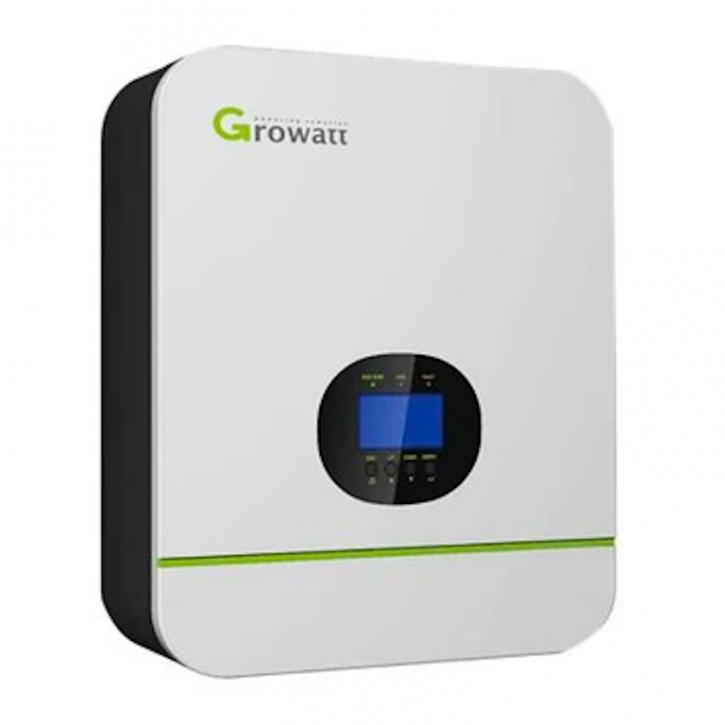

Model: SPF 3000TL HVM-24
Battery voltage: 24VDC.
Warranty: 2 years
Inverter Output
Waveform: Pure Sine-Wave.
Rated Power: 3000VA/3000W.
Parallel Capability: No.
AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz.
Surge Power: 6000VA.
Efficiency (Peak): 93%.
Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).
Solar Charger
Maximum PV Array Power: 1000W.
MPPT Range @ Operating Voltage: 30VDC ~80VDC.
Standby Power Consumption: 2W.
Maximum PV Array Open Circuit Voltage: 100VDC.
Maximum Efficiency: 97%.
Maximum Solar Charge Current: 50A.
AC Charger
Charge Current: 30A.
AC Input Voltage: 230 VAC.
Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
Frequency Range: 50Hz/60Hz (Auto sensing).
Physical
Dimension (D/W/H) in mm: 53cm x 40cm x 21cm
Net Weight (kgs): 11.
