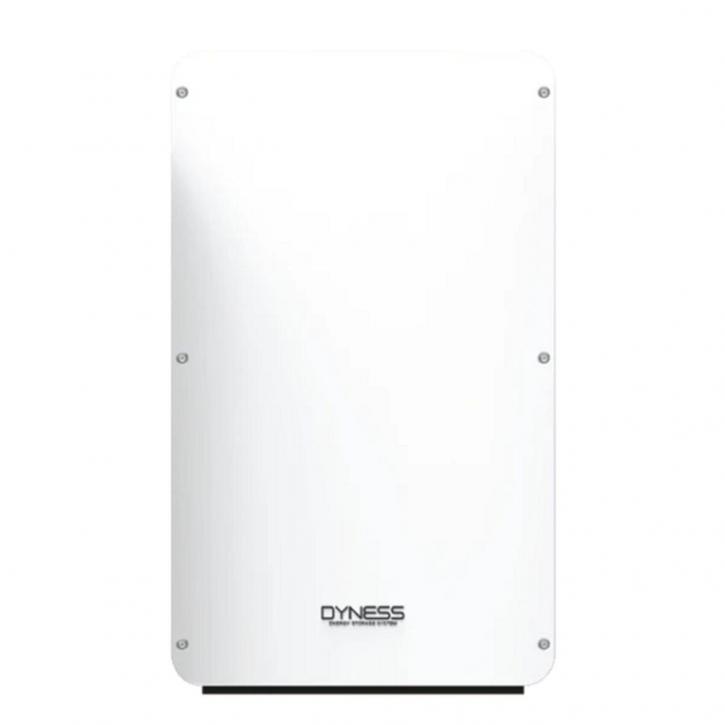

DYNESS Powerbox Pro 10.24KWH 48V LiFePO4 BATTERY
TYPE: LiFePO4
The Dyness 10.24KWH Powerbox Pro lithium battery provides a good solution for residential electricity consumption. LiFePO4 chemistry battery with safety performance and longer cycle life. Four specifications for your choice which offers you various capacities to meet more of your requirements. The Dyness Powerbox Pro 10.24kWh Lithium Battery is designed to look good with great preformance.
Dyness 10.24KWH Powerbox Pro is a high-quality and efficient lithium-ion battery with smart BMS(Battery Management System) which can be easily installed and maintained. It is compatible with leading brands of inverters such as Luxpower, Deye, Growatt, Voltronic, and Victron inverters. Dyness 10.24Kwh – the best lithium-ion battery price battery on the market.
Features
- Complies with European ROHS, Certified SGS, employs non-toxic, non-pollution environment-friendly battery.
- Anode materials are lithium iron phosphate (LiFePO4), high safety performance with longer life span.
- Equipped with BMS (battery management system) mode with better performance, possesses protection function like over-discharge, over-charge, over-current, abnormal temperature.
- Self-management on charging and discharging, Single core balancing function.
- Intelligent design configures integrated inspection module.
- Flexible configurations allow parallel of multi battery for longer standby time.
- Self-ventilation with lower system noise.
- Less battery self-discharge, then recharging period can be up to 10 months during the storage.
- No memory effect so that battery can be charged and discharged shallowly.
- With wide range of temperature for working environment, -20℃ ~ +55 ℃, circulation span and discharging performance are well under high temperature.
- Less volume, lighter weight, seal grade up to IP65 embedding design for easier installation and maintenance.
- APP Monitoring: Remote upgrade available.
- Easy to Installation: Plug and play.
- Expandable: Up to 4 units in parallel.
- High Safety: LFP & smart BMS.
- Wide Compatibility: Matching with leading inverter brands.
- Tailor-made Cabinet: Suitable for multi-module install.
Specifications
BatteryType: LiFePO4
Nominal Capacity: 200Ah
Nominal Battery Energy: 10.24kWh
Recommend Output Power: 5.12kW
Max Output Power: 7.68kW
Recommended Charge/Discharge Current: 100A
Max.Charge/Discharge Current: 150A
Peak Power Charge/Discharge Current: 200A(15s)
Depth of Discharge: 90%
Net Weight: 103kg
Nominal Voltage: 51.2V
Dimension[W*D*H]: 555*210*928mm
Working Voltage: 44.8-57.6V
Charging Temp Range: 0~55℃
Discharging Temp Range: -20~55℃
Communication: CAN/RS485/RS232
Warranty: 5Years
Warranty Document Supplied: Yes
Cycles: 6000
Protection Level: IP65
Configuration: Up to 5units in parallel
Color: White
Alarms: Overcharge/Overdischarge/Overcurrent/Overtemperature/ShortCircuit
Monitoring & Protection: Each system has smart BMS, breaker embedded in system
Pros: Can be used in both off-grid and hybrid setups, compactdesign, modularexpansion
Compatible Inverters: Victron/SMA/Goodwe/Imeon/Solis/SAJ/Growatt/Luxpower/Voltronic/Deyeetc.
Certification & Safety Standard: CE/UN38.3/IEC62619/IEC62040 undergoing
