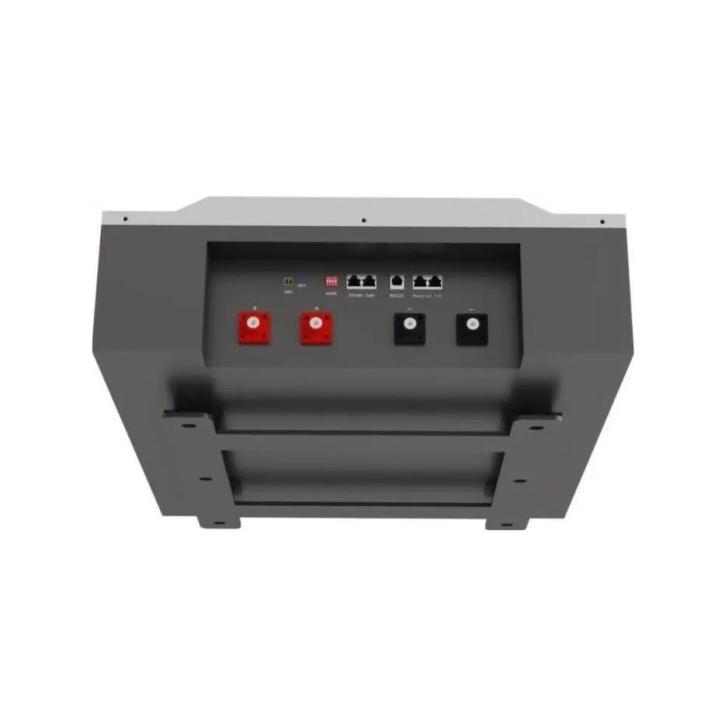

Esener 5.12Kwh 51.2v 100Ah LiFePO4 Lithium Battery

TYPE: LiFePO4

The Esener 2.56 kWh 25.6V 100Ah LiFePO4 Lithium Battery is a high-quality and reliable energy storage solution suitable for various applications. With its excellent high-temperature performance and long service life, this battery offers dependable power for your residential or business needs.


Designed with advanced battery management system (BMS) technology, the Esener 5.12Kwh 51.2V 100Ah battery ensures optimal performance and safeguards against common issues such as overcharge, overdischarge, overcurrent, short-circuit, and temperature fluctuations. Its BMS also features a current limiting factor, enhancing its safety and efficiency.

One of the standout features of this battery is its compatibility with leading inverter brands, including Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA, and more. With its CAN Bus integration, seamless communication between the battery and the inverter is achieved, enabling efficient energy conversion and management.

The Esener 5.12Kwh 51.2V 100Ah Lithium Battery offers exceptional high-temperature performance, ensuring reliable operation even in demanding conditions. Its high cycle life, with over 6000 cycles at 80% depth of discharge (DOD), guarantees a long lifespan of 10-15 years, making it a cost-effective and sustainable energy storage solution.

Featuring a 1C high-performance lithium battery, the Esener battery delivers excellent continuous high current discharge performance, allowing for reliable power supply during peak demand periods. Its high energy density and conversion efficiency maximize energy utilization and optimize overall system performance.

Installation and maintenance of the Esener battery are hassle-free. It can be easily wall-mounted or placed on a shelf rack, thanks to its compact design and integrated handles for convenient handling and mounting. The battery's low self-discharge rate ensures minimal power loss during standby periods.

The Esener 5.12Kwh 51.2V 100Ah Lithium Battery comes with built-in protection mechanisms for over-charge, over-discharge, and over-temperature conditions, ensuring the safety of both the battery and connected devices. Additionally, it is certified to meet CE, UN38.3, IEC, and MSDS standards, providing peace of mind regarding its quality and reliability.

Features


Esener 51.2V 100Ah LiFePo4 Single Battery Module
Wall Mount Or Shelf Rack Installation With Brackets Included
Complete with an integrated Battery Management System (BMS)
Advanced BMS With Current Limiting Factor
Parallel Connection Up To 15 Packs With Full Communication To A Total Of 72kwh
Normal Voltage: 51.2V
Rated Capacity (5HR):110Ah
Total Usable 4.8 kWh
Maximum Continuous Charging Current: 100A
Maximum Continuous Discharging Current: 100A
Equalised Charge Voltage: 58.4V
Low Self-Discharge
High Energy Density and Conversion Efficiency
Built In Protection -Over-Charge, Over-Discharge, Over-Temperature
LCD Control Panel



Specifications

Model: ES-5.12KWH
Rated Capacity (5HR): 110Ah
Voltage: 51.2V
Discharge Cutoff Voltage: 40.0V
Equalised Charge Voltage: 58.4V
Maximum Continuous Charging Current: 100A
Maximum Continuous Discharging Current: 100A
C. Rating: 1.0C
Weight: Approximately 46kg
Display: LCD
Parallel: Parallel connection up to 15 packs with full communications
Dimensions (WxDxH): 505mm x 162mm x 543mm
Ports: 1x CAN Bus, 1x RS-485 Battery Link ports, 2x Parallel Instruction Ports
Cells: New Li-Ion Prismatic Cells
Design Life: +/- 15 Years
Cycle Life @ 1C: +/-4000 Cycles @ 100% DOD, Above 6000 cycles @ 80% DOD

With its exceptional performance, long lifespan, and comprehensive protection features, the Esener 51.2V 5.12Kwh 100Ah Lithium Battery is a reliable and efficient choice for energy storage needs. Whether for residential, commercial, or off-grid applications, this battery ensures uninterrupted power supply, optimal energy management, and a greener future.
